Model

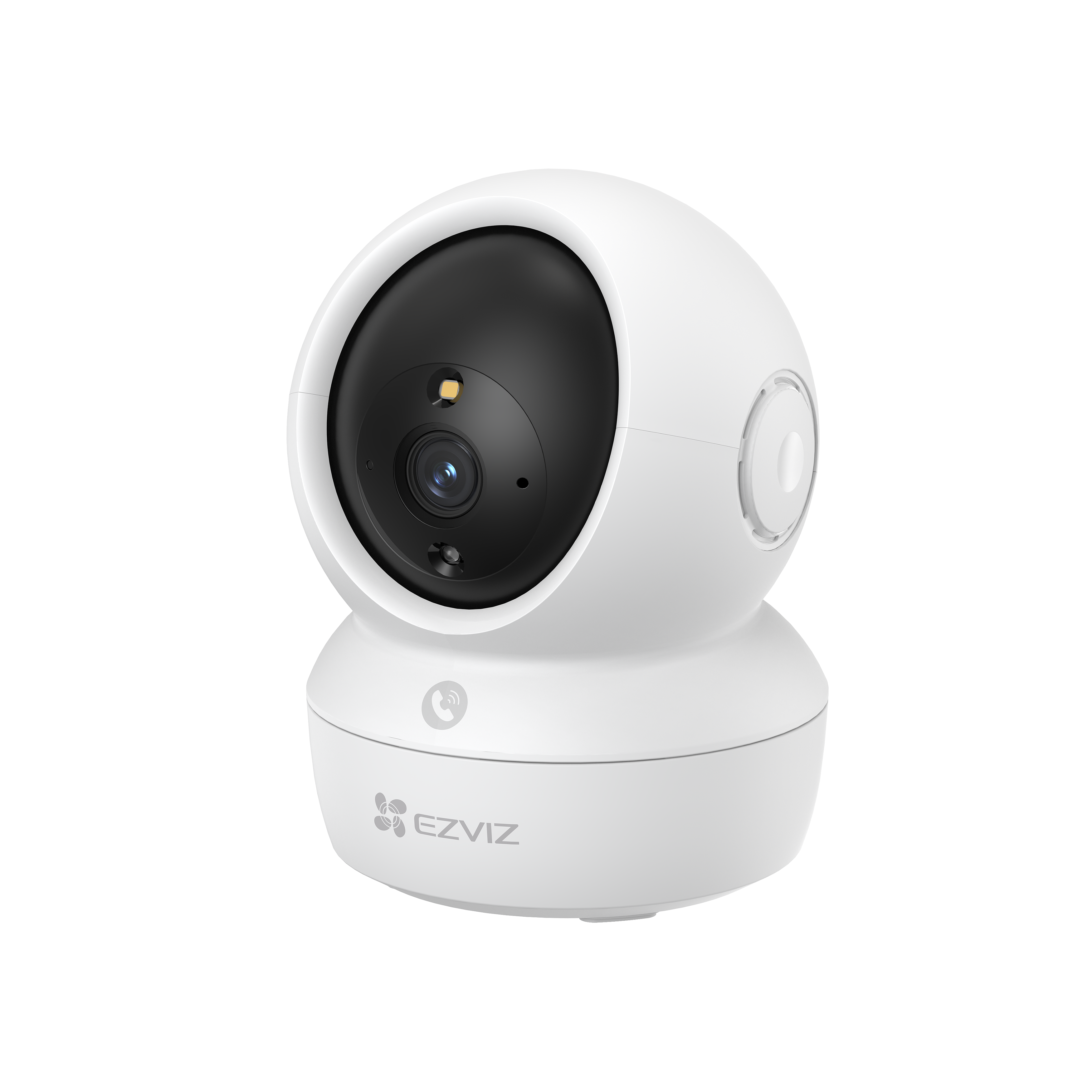

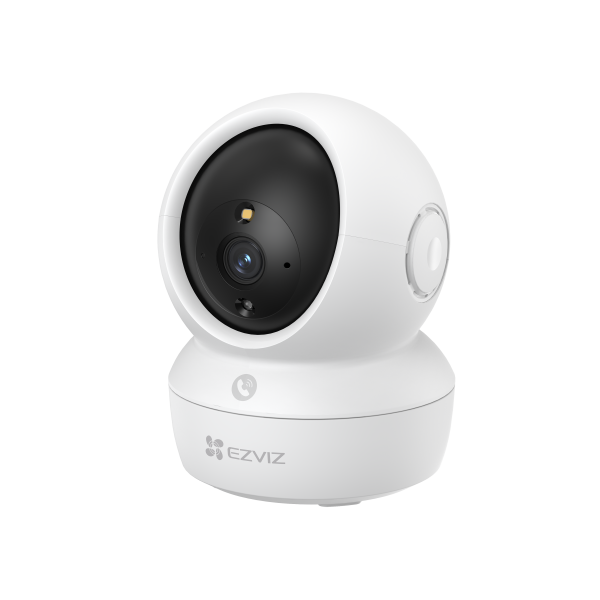

Model: CS-H6c-R105-1L2WF

Camera

Image Sensor: F1.6@1/3″ Progressive Scan CMOS

Shutter Speed: Self-adaptive shutter

Lens: 4mm, view angle: 90° (Diagonal), 80° (Horizontal), 43° (Vertical)

Lens Mount: M12

Day & Night: IR-cut filter with auto-switching

DNR: 3D DNR

WDR: Digital WDR

Compression

Video Compression: H.264/H.265

Video Bit Rate: Adaptive bit rate


Max. Resolution: 1920 × 1080

Frame Rate: Max: 25fps; Self-Adaptive during network transmission

Network

Smart Alarm: Motion detection, Human Detection, Human Tracking, Big Noise Detection, Auto patrol

Wi-Fi Pairing: AP Pairing

Protocol: EZVIZ cloud proprietary protocol

Interface Protocol: EZVIZ cloud proprietary protocol

Interface

Storage: Micro SD card slot (Max. 512G)

Power: TYPE-C

Wired Network: RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

Standard: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth: Supports 20 MHz

Security: WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps

Output Power (EIRP): 19 dBm

Antenna Gain: 1.9 dBi

General

Operating Conditions: -10°C to 45°C (14°F to 113°F), Humidity 95% or less (non-condensing)

Power Supply: DC 5V/1A

Power Consumption: 5W max

IR Range: MAX. 10 meters (32.81ft)

Dimensions: 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)

Packaging Dimensions: 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”)

Bare Weight: 218g (0.48lb)

In the Box

• Camera
• Power Adapter
• Power Cable
• Drill Template
• Mounting Plate
• EZVIZ Screw Kit
• Regulatory Information
• Quick Start Guide

Warranty

Warranty: 2 Years
