Model

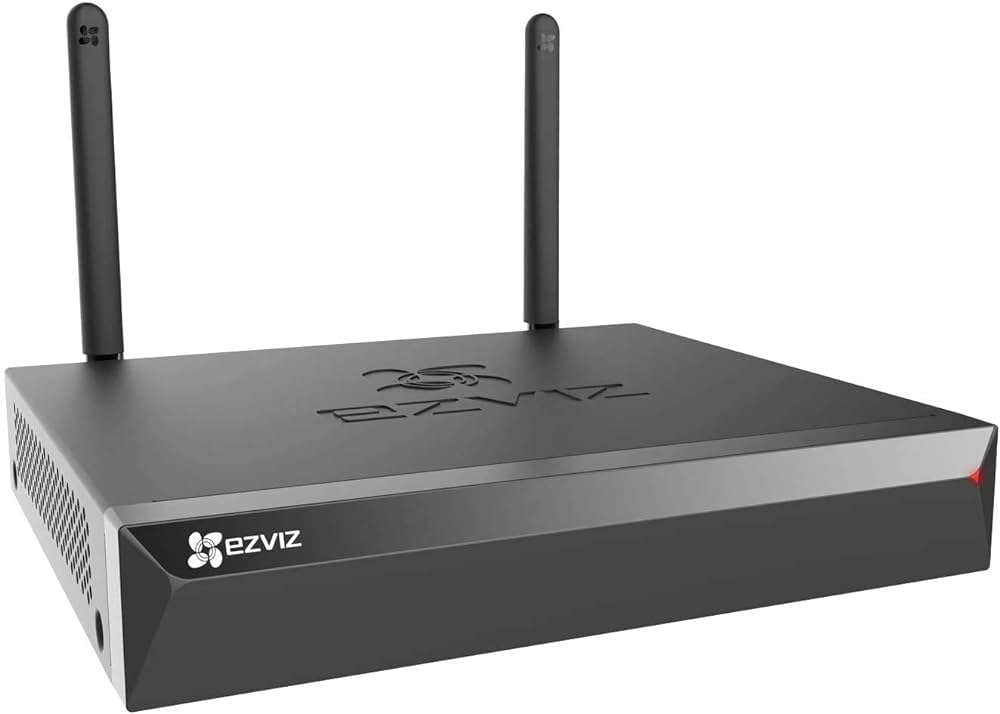

Model: CS-X5S-R100-4W

IPC Access Capability

Wireless/Wired IPC Access Capability: 3K *4

Wired IPC Access Capability: 3K *4 (X5S-4W)

Network Parameters

Antenna Number: 2

Max Wireless Range: 100m

Radio Frequency: 2.4G

Ethernet Port: One 10/100M adaptable Ethernet interface

Required Access Bandwidth: 50 Mbps/100 Mbps

Video Output

VGA: 1 channel (identical to HDMI output) resolution up to 1920*1080/60Hz

HDMI: 1 channel resolution up to 2592*1944/30HZ

Audio/Video Codec

Recording Resolution: 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF

Video Encoding: H.265, H.264

Decode Playback: Supports 4*3K/Supports 8*3K

Video Recording Management

Video Recording Mode: Manual video recording; Motion detection recording; Scheduled video recording; Event triggered recording

Backup Mode: Hard disk backup, Internet application backup

Playback Mode: Instant playback; Normal playback; Event playback; Tag playback; Log event playback

Open Protocol

Open Protocol Support: HIKVISION, ONVIF (V.2.5)

HDD

Interface Type: One built-in SATA port

Capability: Supports 1TB to 8TB 3.5-inch HDD

External Interface

Audio Input/Output: Not supported

Hardware Reset: Supports

USB2.0 Interface: 2

Dimensions

Product Dimensions: 235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch)

Packaging Dimensions: 387 × 362 × 75 mm (15.2 × 14.3 × 3 inch)

Power Supply

DC: 12V/1.5A

Consumption (Standby Status): ≤8W

Weight

Net Weight: 932 g

In the Box

• X5S NVR × 1
• Power Adapter × 1
• Mouse × 1
• Screw Kit × 1
• Regulatory Information × 2
• Quick Start Guide × 1

Warranty

Warranty: 2 Years
